SPECIFICATIONS

Brand Name: NONE

Color: White

High-concerned chemical: None

Model Number: Air Duct Fan

Origin: Mainland China

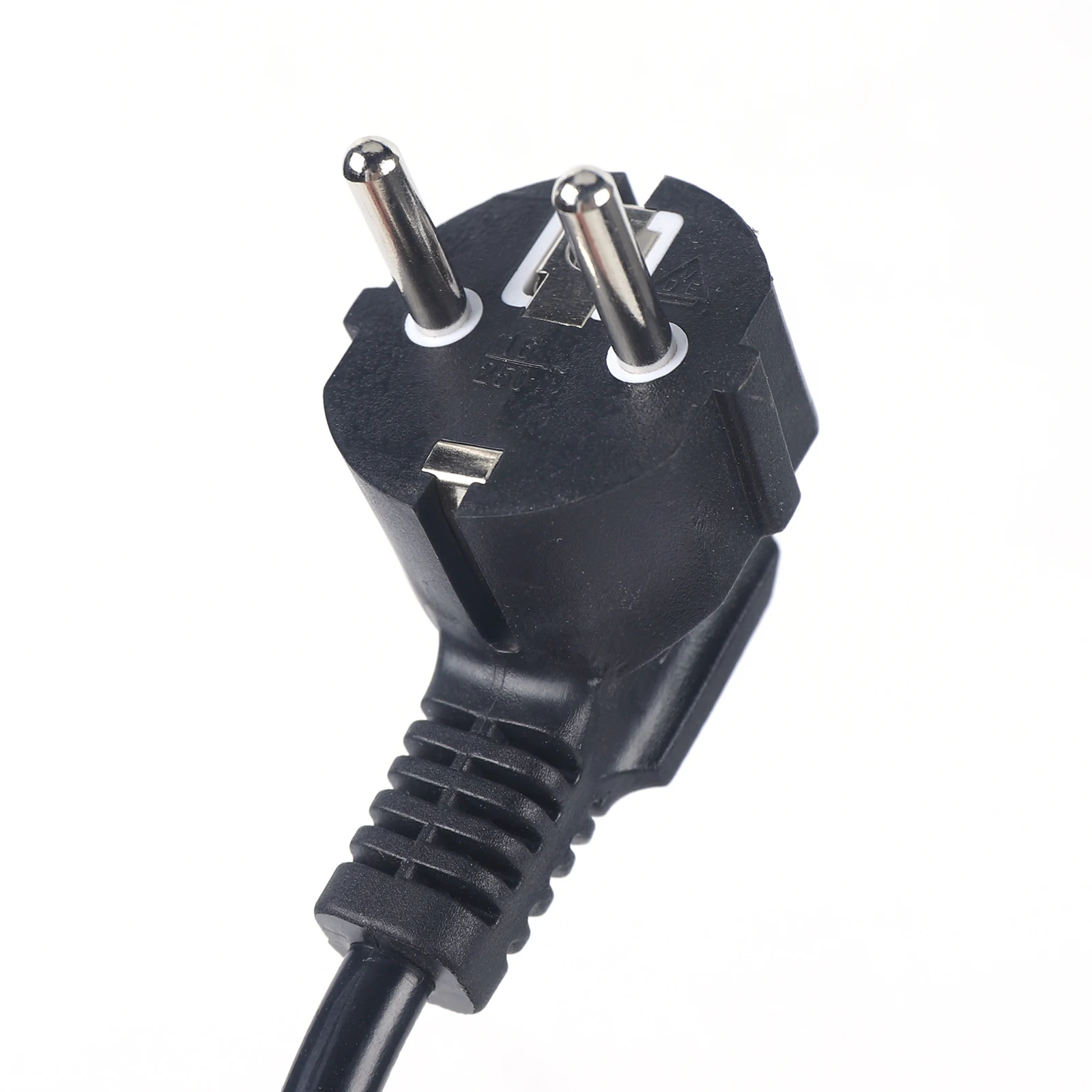

Plug Type: EU Standard

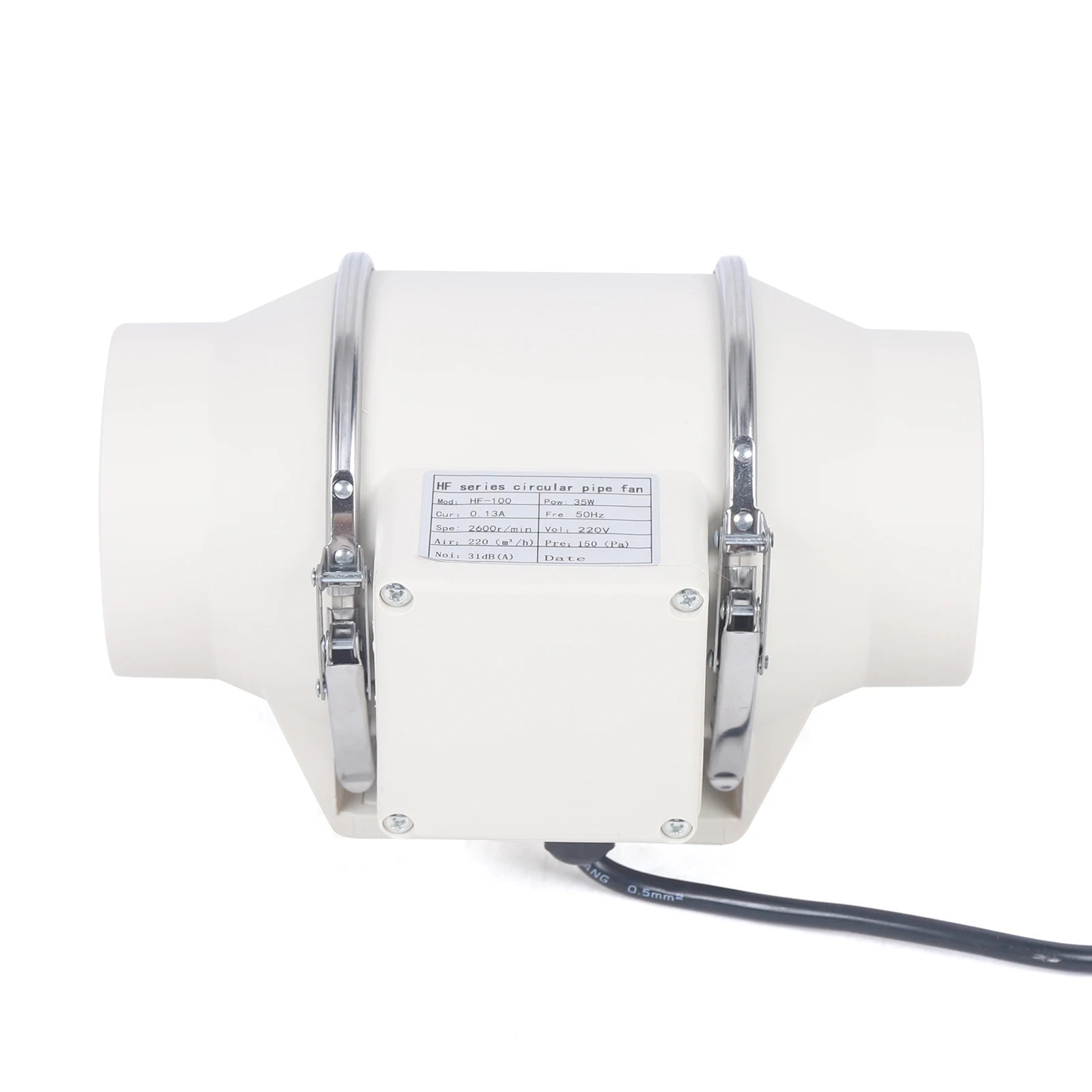

HF-100 Exhaust Ventilation Fan 220m³/h

Specification

Model: HF-100

Material: ABS, Stainless Steel

Color: White

Process: Injection Molding

Style: Modern

Installation Required: Yes

Motor Type: Pure Copper Motor

Plug Type: EU Standard

Voltage: 220V

Frequency: 50HZ

Power: 35W

Current: 0.13A

Air Volume: 220m³/h/129.41CFM

Noise: 31dB

Pressure: 150Pa

Speed: 2600 r/min

Applicable Area: 8-16m²/86.11-172.22ft²

Applicable Environmental Temperature: About 50℃/122℉

Power Cable Length: 50-60cm/19.69-23.62in

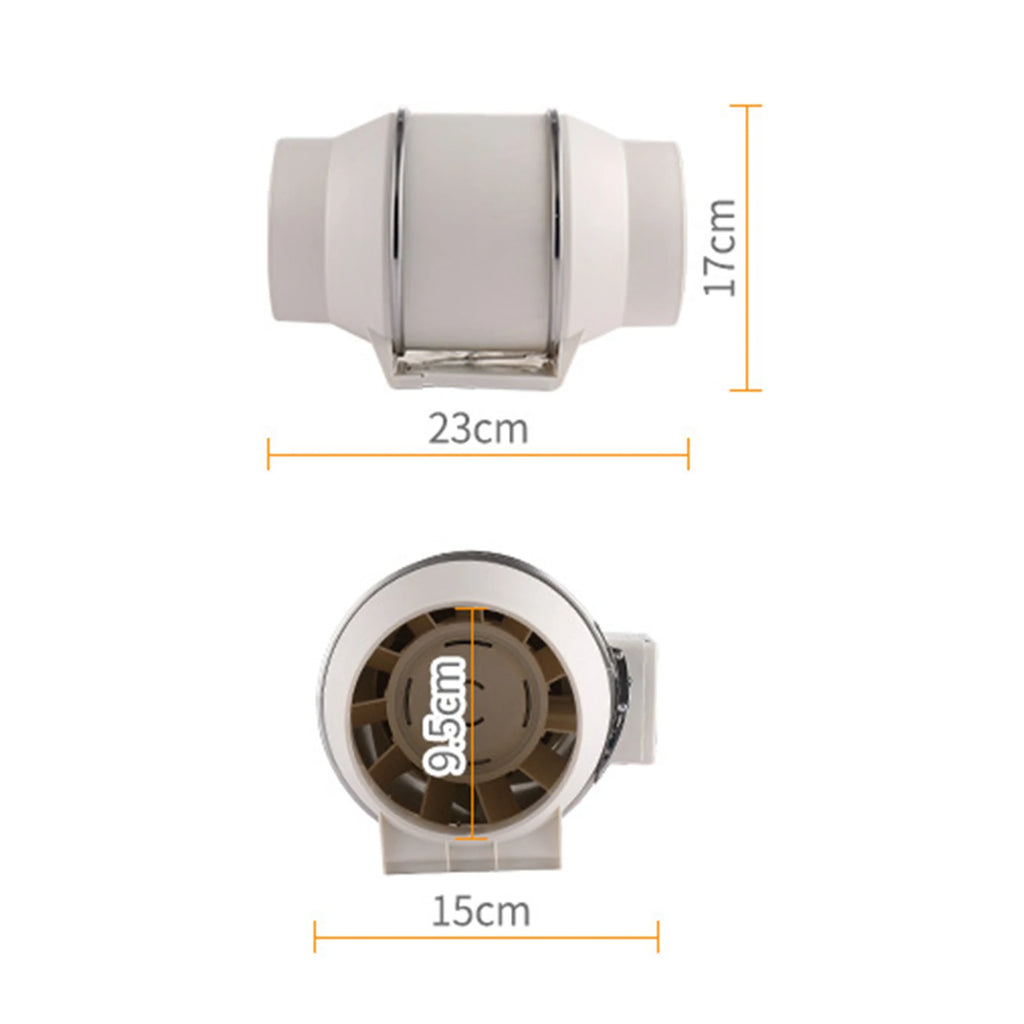

Air Vent Diameter: 9.5cm/3.74in

Product Size: 23*15*17cm/9.06*5.91*6.69in

Package Size: 24*18*18cm/9.45*7.09*7.09in

Gross Weight: 1.52kg/3.35lbs

Net Weight: 1.36kg/3lbs

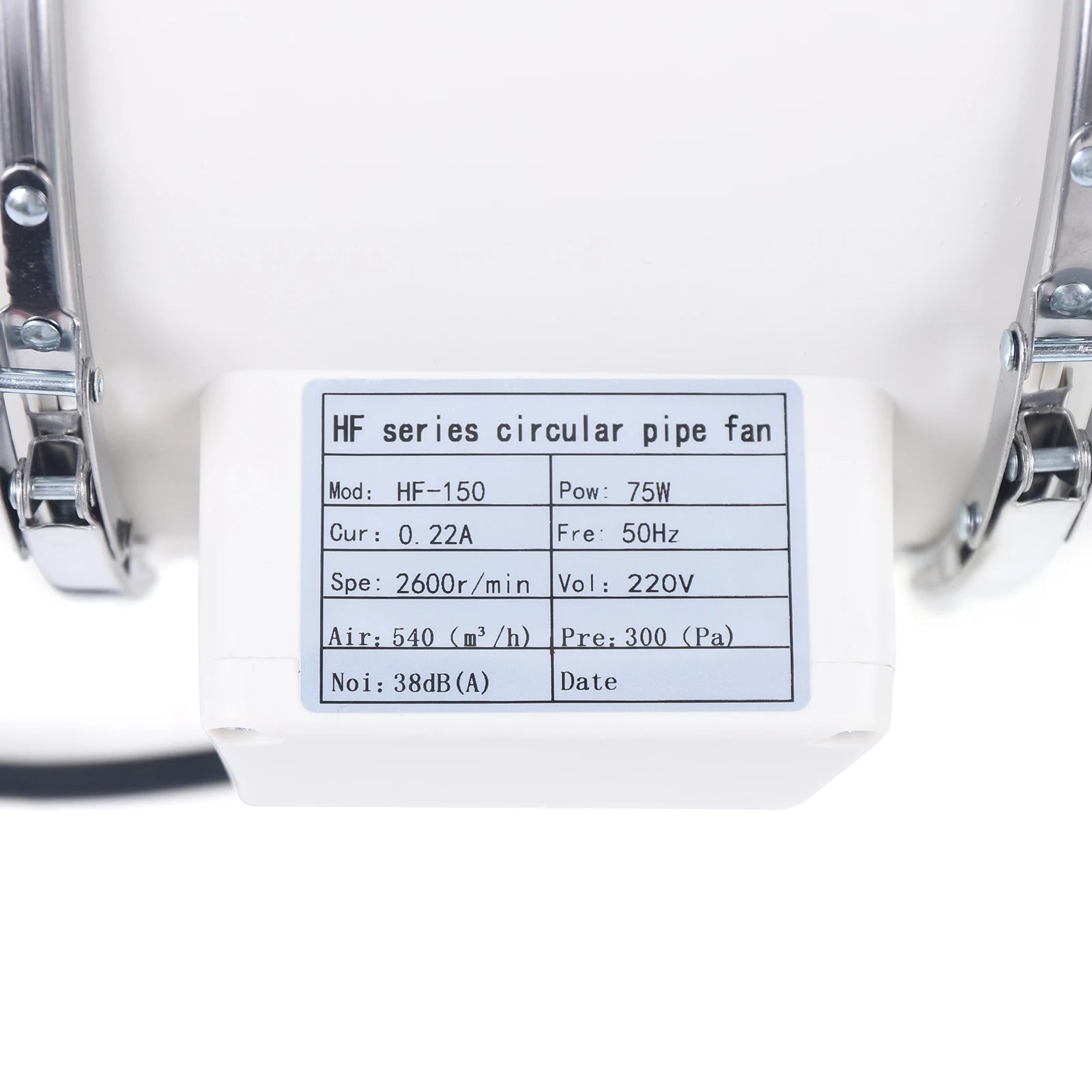

HF-150 Exhaust Ventilation Fan 540m³/h

Specifications:

Model: HF-150

Color: White

Voltage: 220 V / 50 HZ

Power : 75 W

Current: 0.22 A

Air volume: 540m ³/ h

Noise: 38dB

Static pressure: 300pa

Speed: 2600 r/ min

Material: Plastic

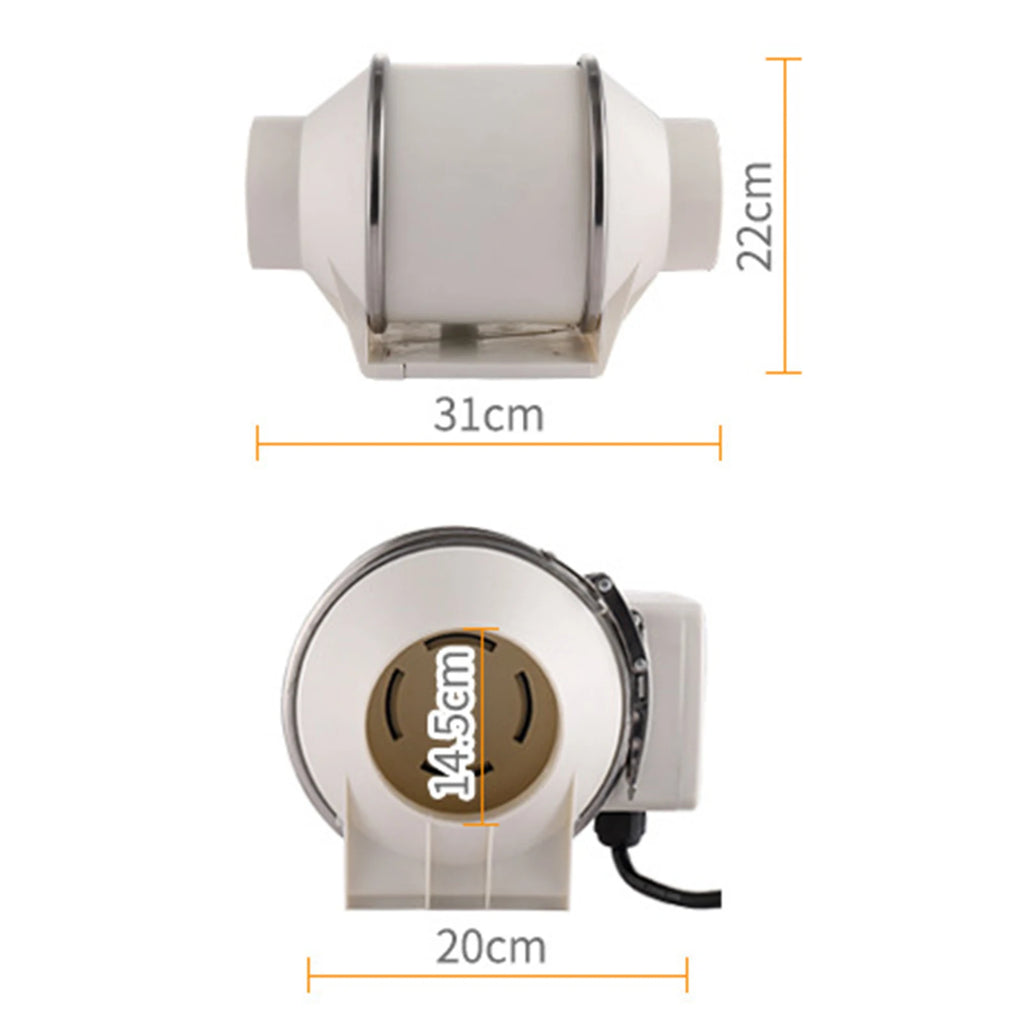

Product size: 31 * 20*22cm

Packing size: 32 * 24 * 23 cm

Product weight: 2 KG

Packing weight: 2.5 KG

HF-200 Exhaust Ventilation Fan 900m³/h

Specifications

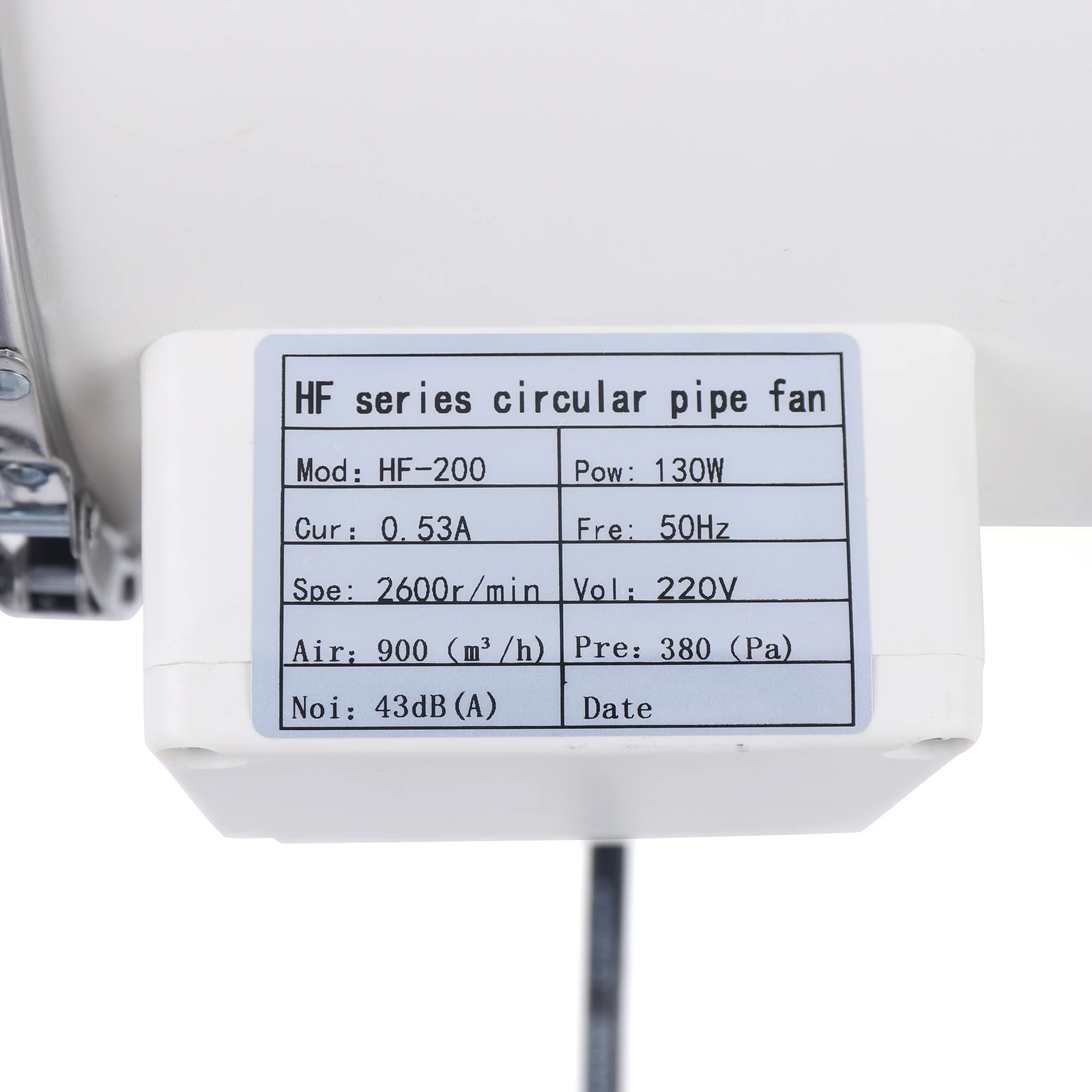

Model: HF-200

Material: Plastic, Stainless Steel

Color: White

Style: Modern

Installation Required: Yes

Motor Type: Pure Copper Motor

Power Source: Corded Electric

Plug Type: EU Standard

Indoor/Outdoor Usage: Indoor

Voltage: 220V, 50HZ

Power: 130W

Current: 0.53A

Air Volume: 900m³/h/529.41CFM

Noise: 43dB

Pressure: 380Pa

Speed: 2600r/min

Applicable Area: About 20-40m²/215.28-430.56ft²

Applicable Environmental Temperature: 20-40℃/68-104℉

Maximum Operating Temperature: 40℃/104℉

Power Cord Length: 70cm/27.56in

Air Vent Diameter: 19.5cm/7.68in

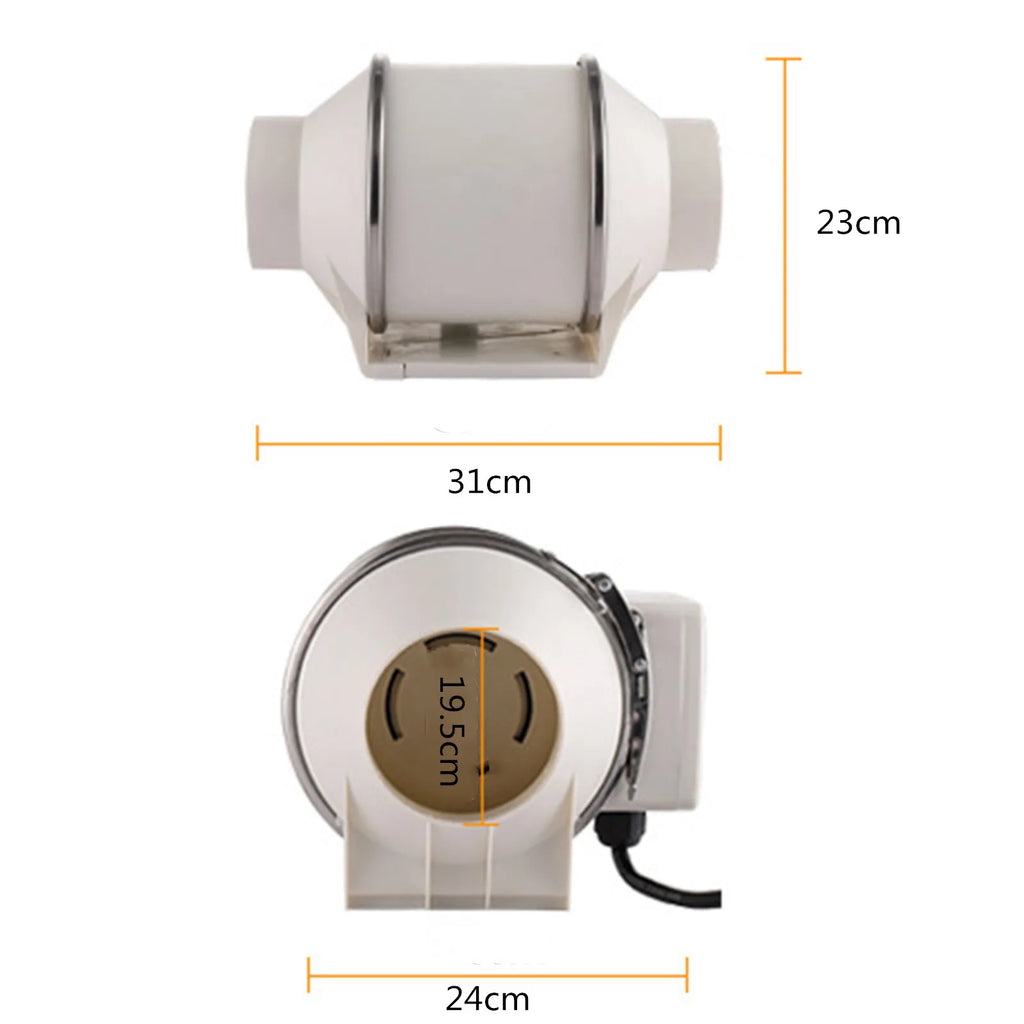

Product Size: 31*24*23cm/12.2*9.45*9.06in

Gross Weight: 3.44kg/7.58lbs

Net Weight: 3kg/6.61lbs

Package Size: 32*26*26cm/12.6*10.24*10.24in

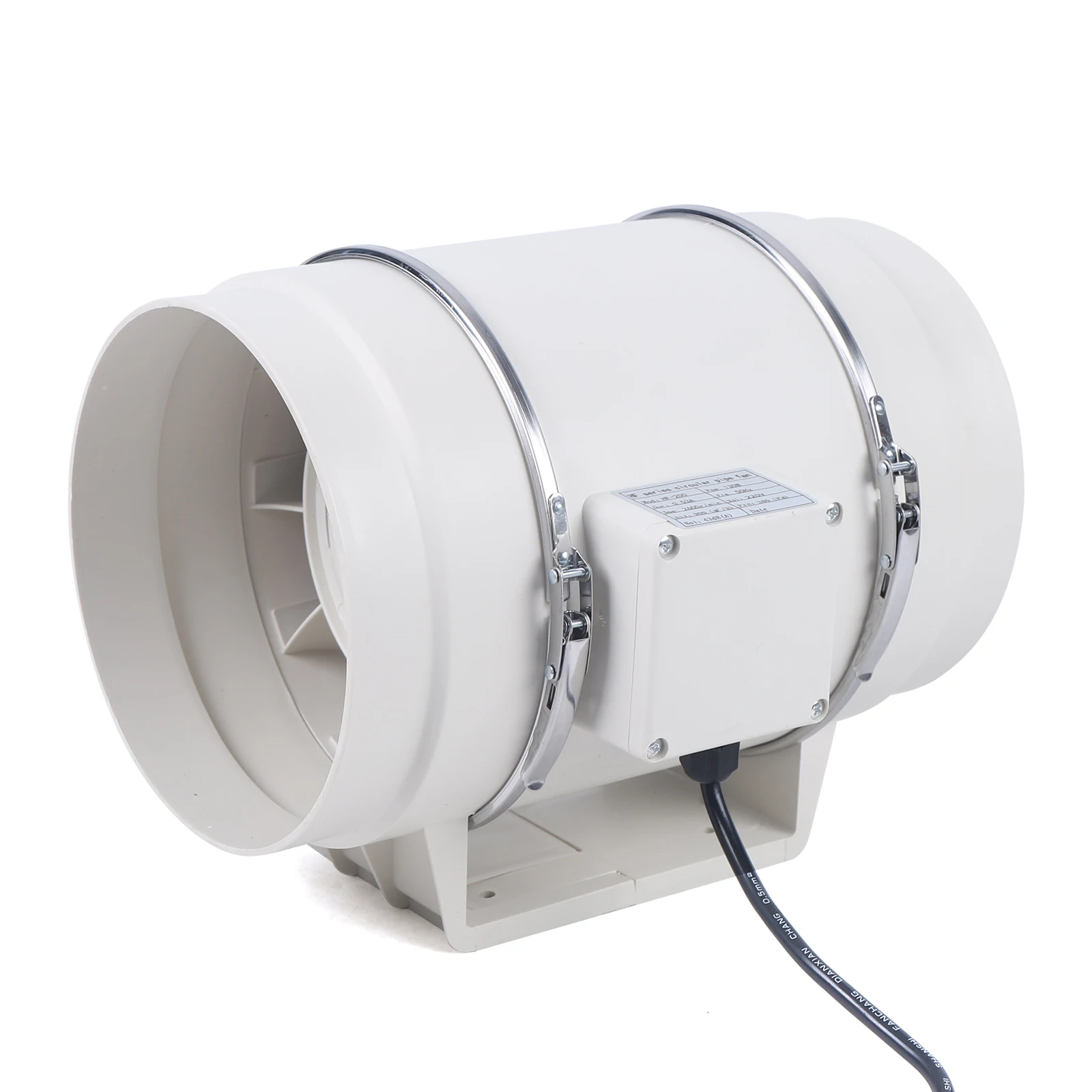

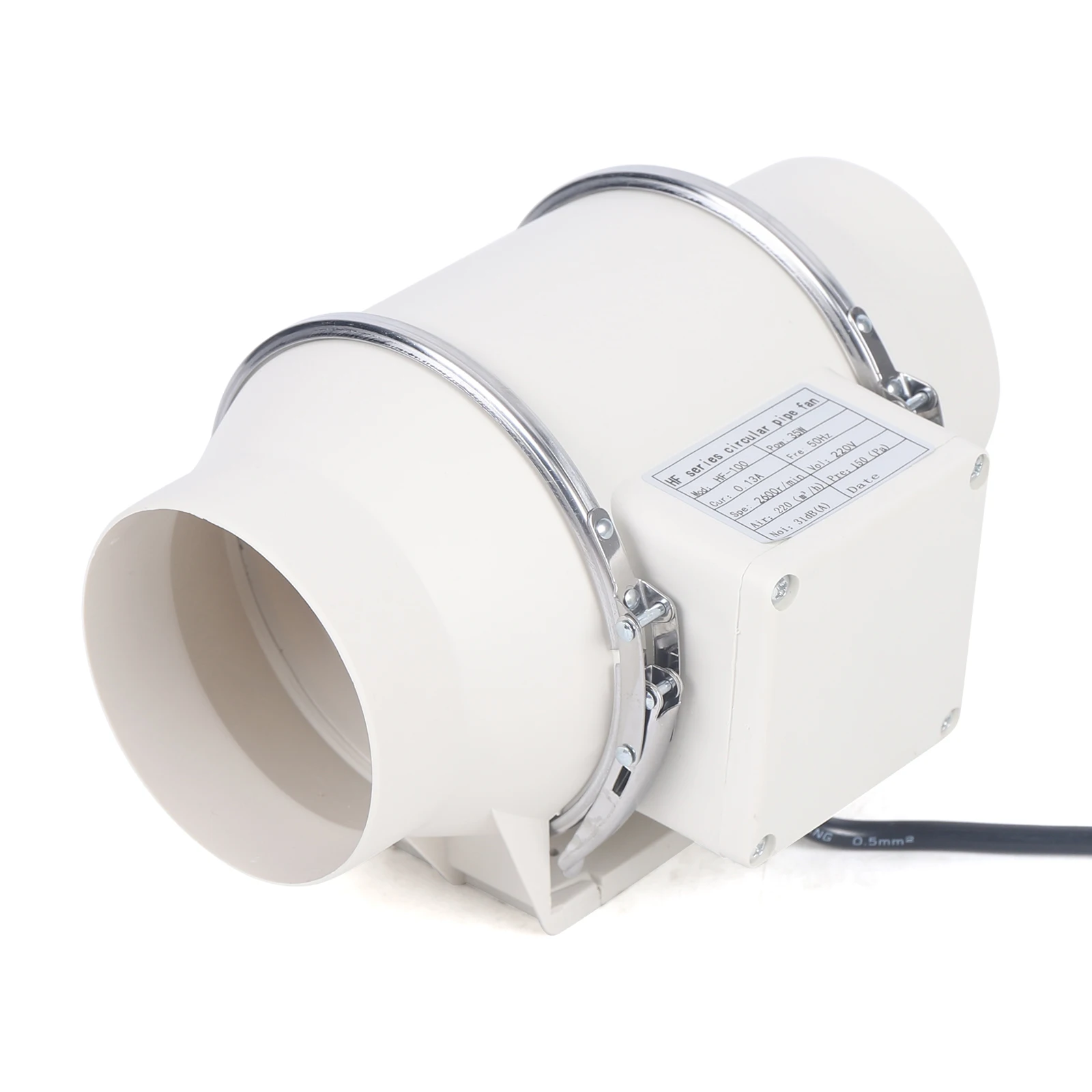

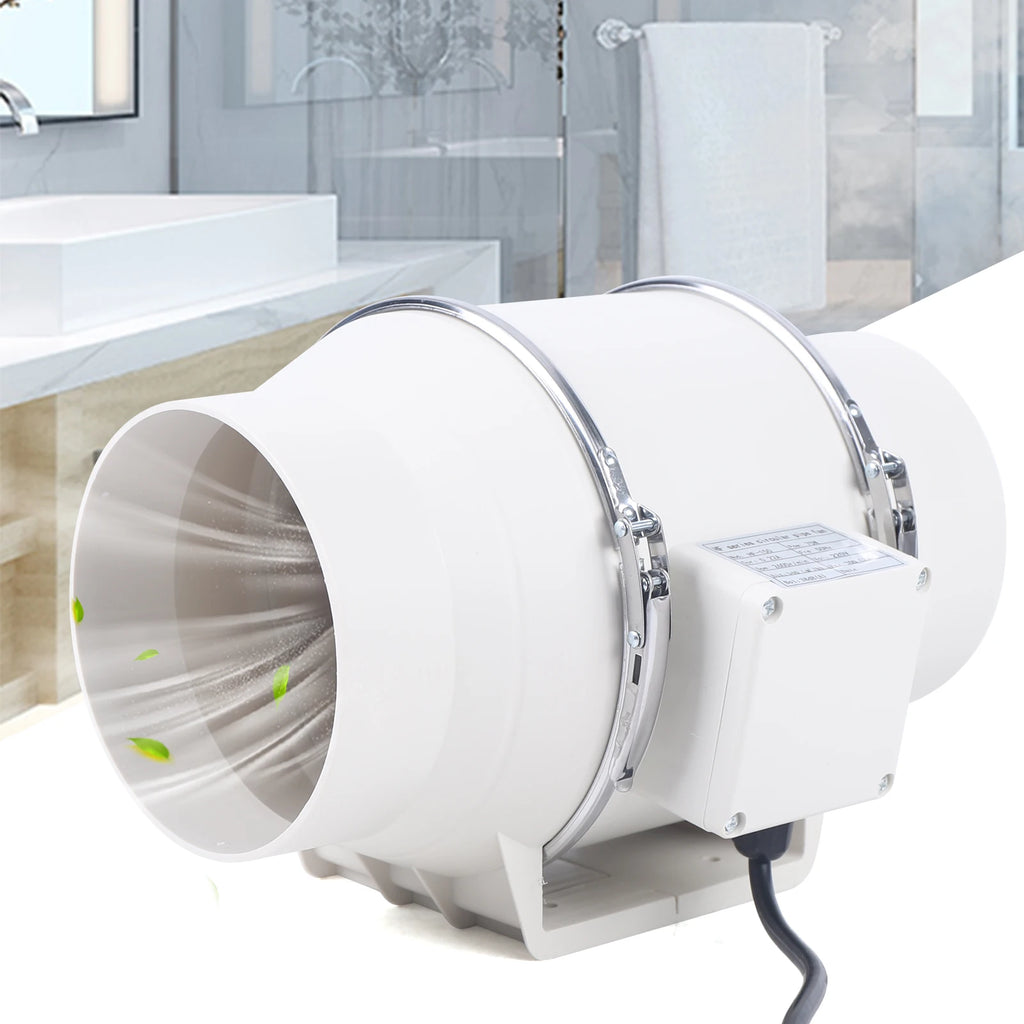

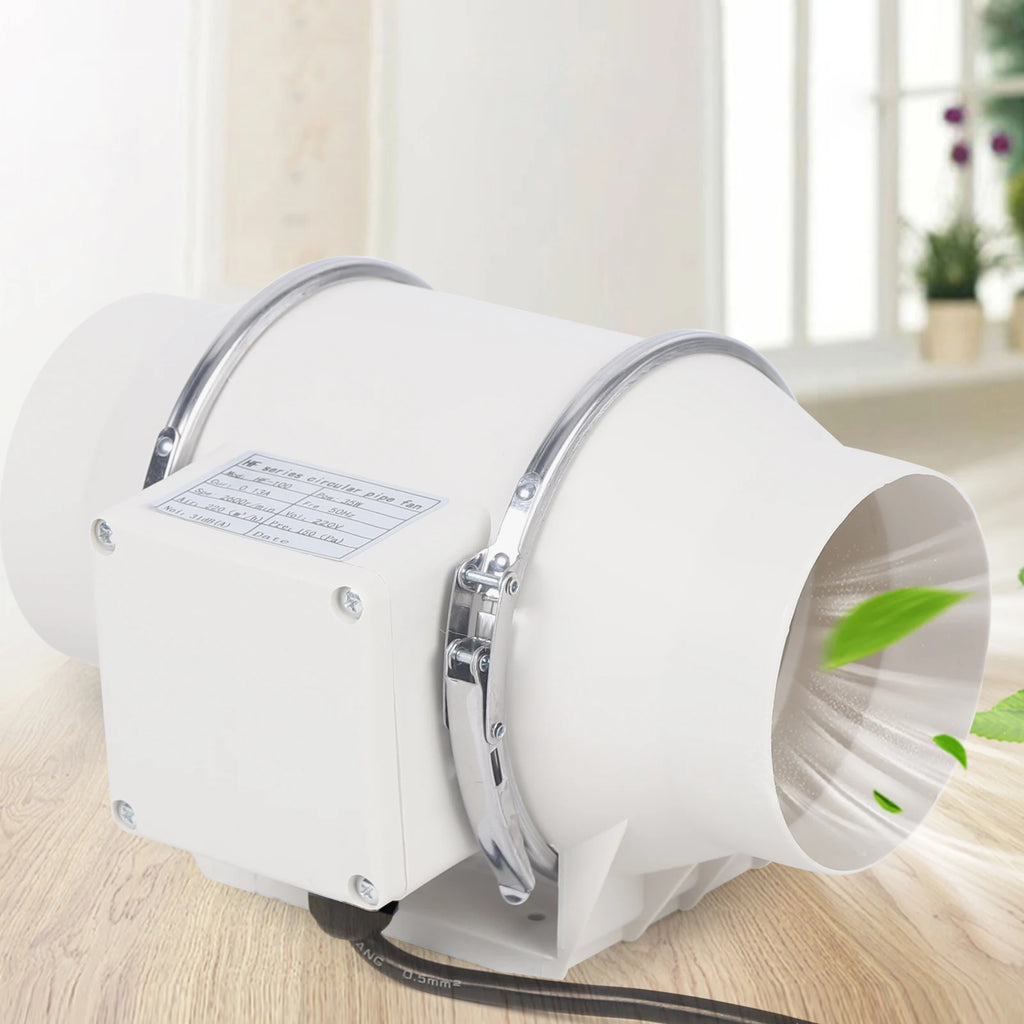

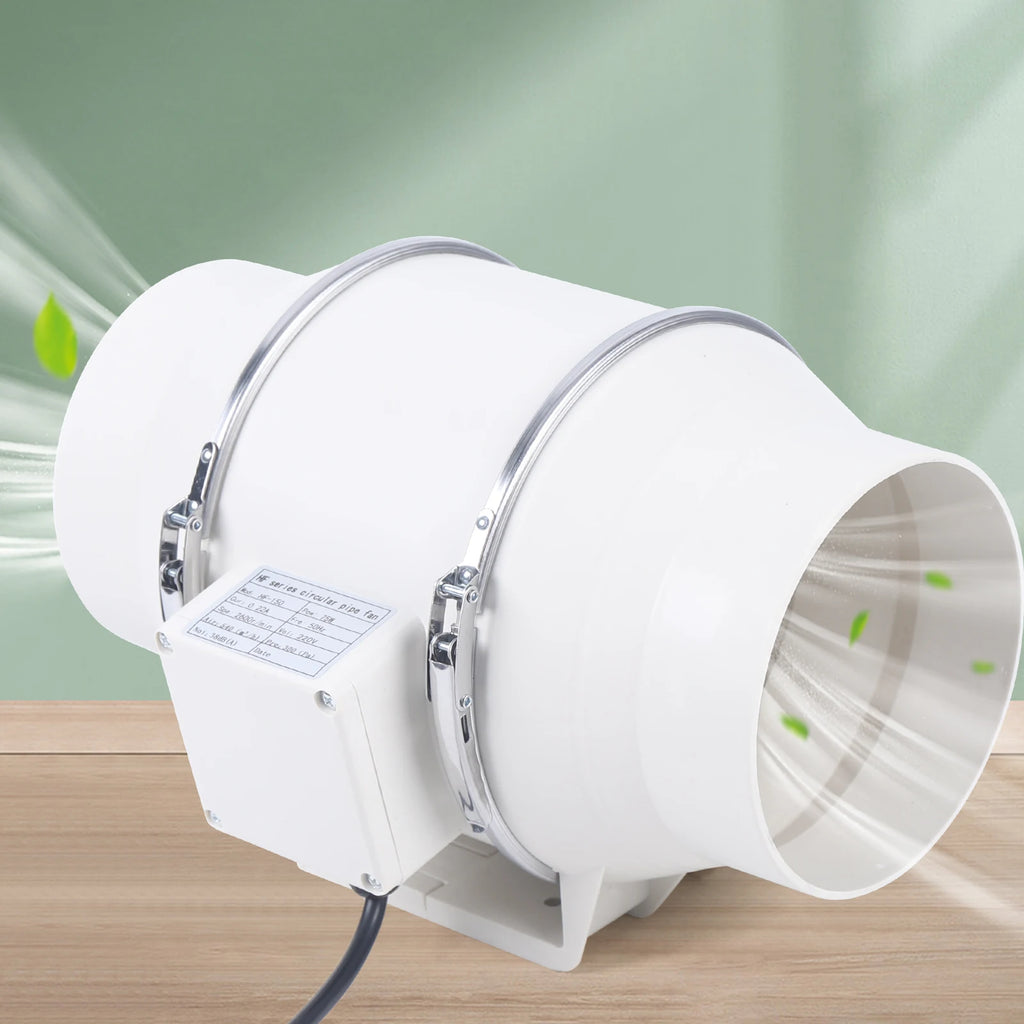

HF-100 220V 35W Air Duct Fan | Silent Pipe Fan | 2600RPM 220m³/h Tube Fan | for Home Kitchen Bathroom Toilet Hotel Industrial Basement Warehouse (EU Plug)

Our air duct fan is an efficient ventilation solution designed for residential, commercial, and industrial use. It is made of ABS, with good toughness and impact resistance. In addition, it has an overheat protection and a low working decibel of 31dB, so you can use it confidently for a long time. Whether it's kitchen exhaust, bathroom dehumidification, or office ventilation, it's easy to handle.

Key Features

Made to Last: Made of high-quality ABS and treated with an injection molding process, this product has a sturdy structure and is impact-resistant, ensuring a long service life.

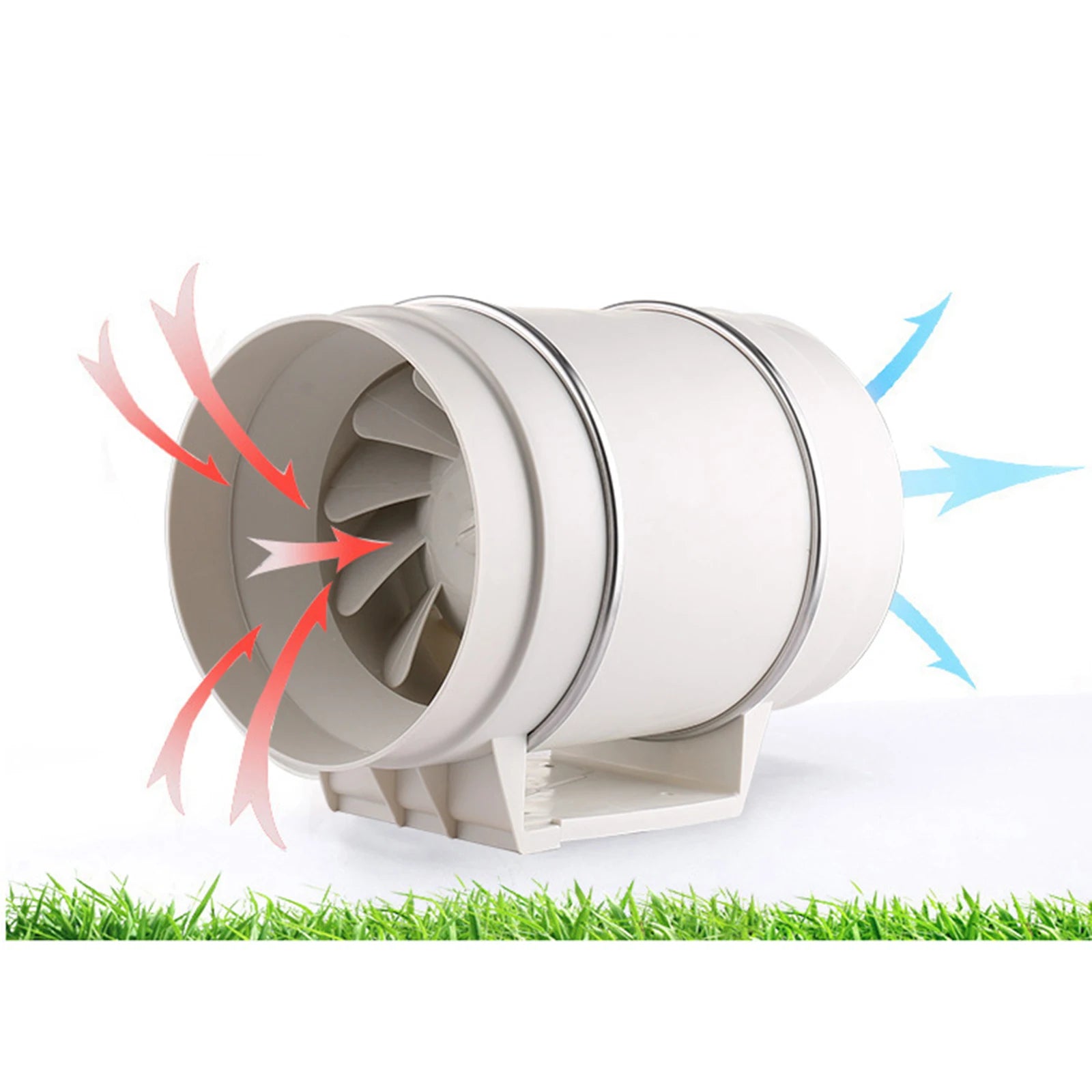

High-efficiency Ventilation: The all-copper motor provides 35W strong power, making its speed up to 2600r/min, air volume up to 129.41CFM, with strong suction and exhaust capacity, which can quickly and effectively discharge indoor air, improving air quality.

Low Noise:It works at a low noise of about 31 dB, equivalent to the sound of a whisper, creating a quiet and comfortable atmosphere for you.

High Safety: The all-copper motor is not easy to burn, the special junction box ensures stable and safe wiring, and the built-in overheating protection function also improves the safety of use.

Versatile Use: 86.11-172.22ft² of the applicable area makes it suitable for a wide range of ventilation needs in residential, commercial, and industrial locations.

Easy Assembly: Itssimple structure helps you finish the installation quickly and use it in a short time.

Compact Design: This duct fan is compact (9.06*5.91*6.69in) and lightweight (3 lbs) enough to be installed in areas with little available space.

Effortless Cleaning: It has a smooth surface and a detachable structure, so you can easily wipe the dust or residue with a towel (not included).

Ideal Gift: With good performance and a modern appearance, it can be used as an ideal housewarming gift for parents, friends, and lovers so that they can enjoy a healthier and safer living environment.

Good Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Enhanced Base: The base has a reinforcement design, effectively enhancing the stability and firmness of the installation.

Stainless Steel Clamp: It makes the product structure more solid and its buckle design allows for easy installation.

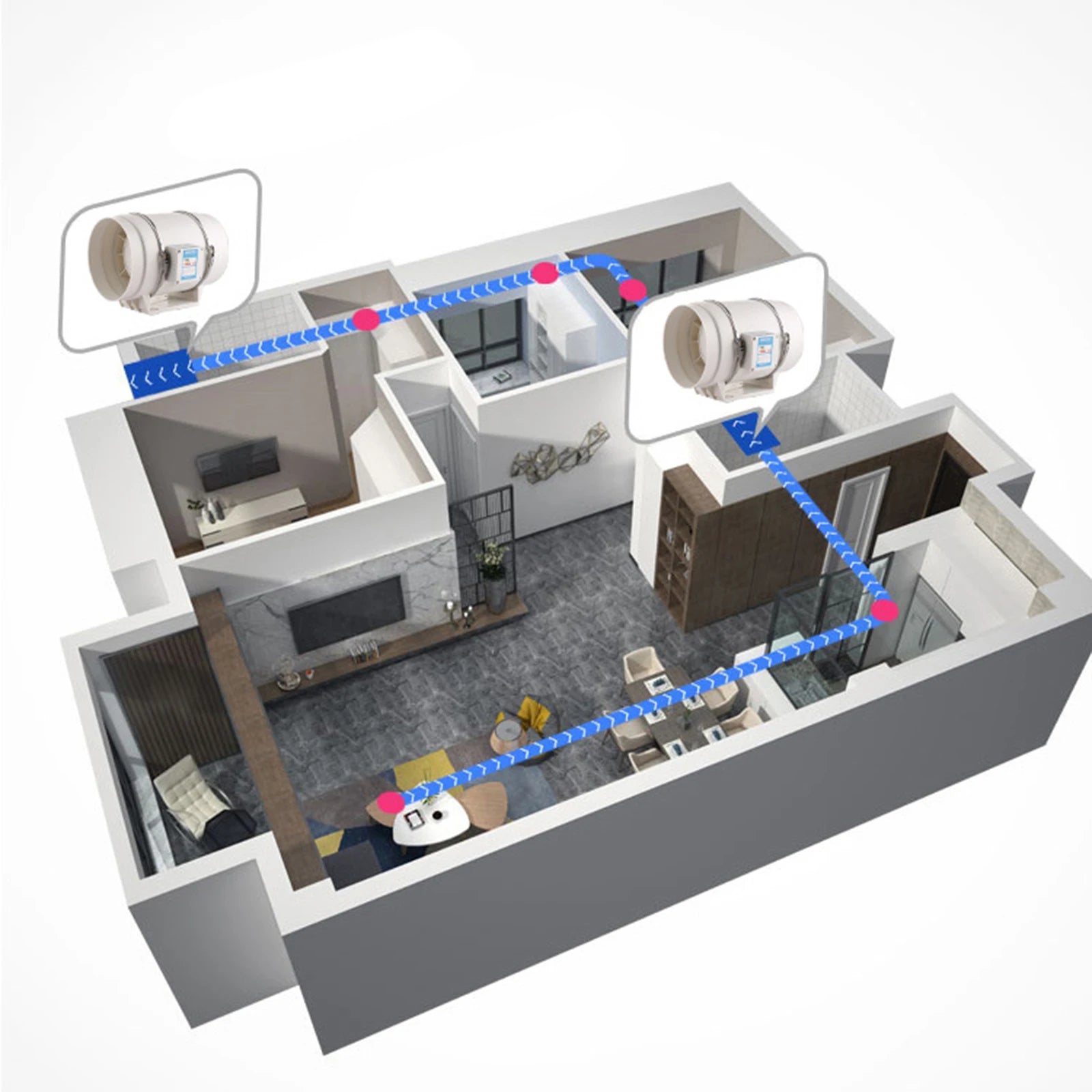

Application

This product is suitable for homes, kitchens, hotels, toilets, warehouses, meeting rooms, office buildings, hospitals, gyms, etc.

Package Included

1* Air Duct Fan

How to Install

1. Loose the clamps and remove the main unit.

2. Choose the right place on the wall.

3. Install the base.

4. Connect pipes.

5. Insert the main unit.

6. Restore the fan.

Notes

1. Please turn the fan off immediately if the blades get stuck by other objects.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

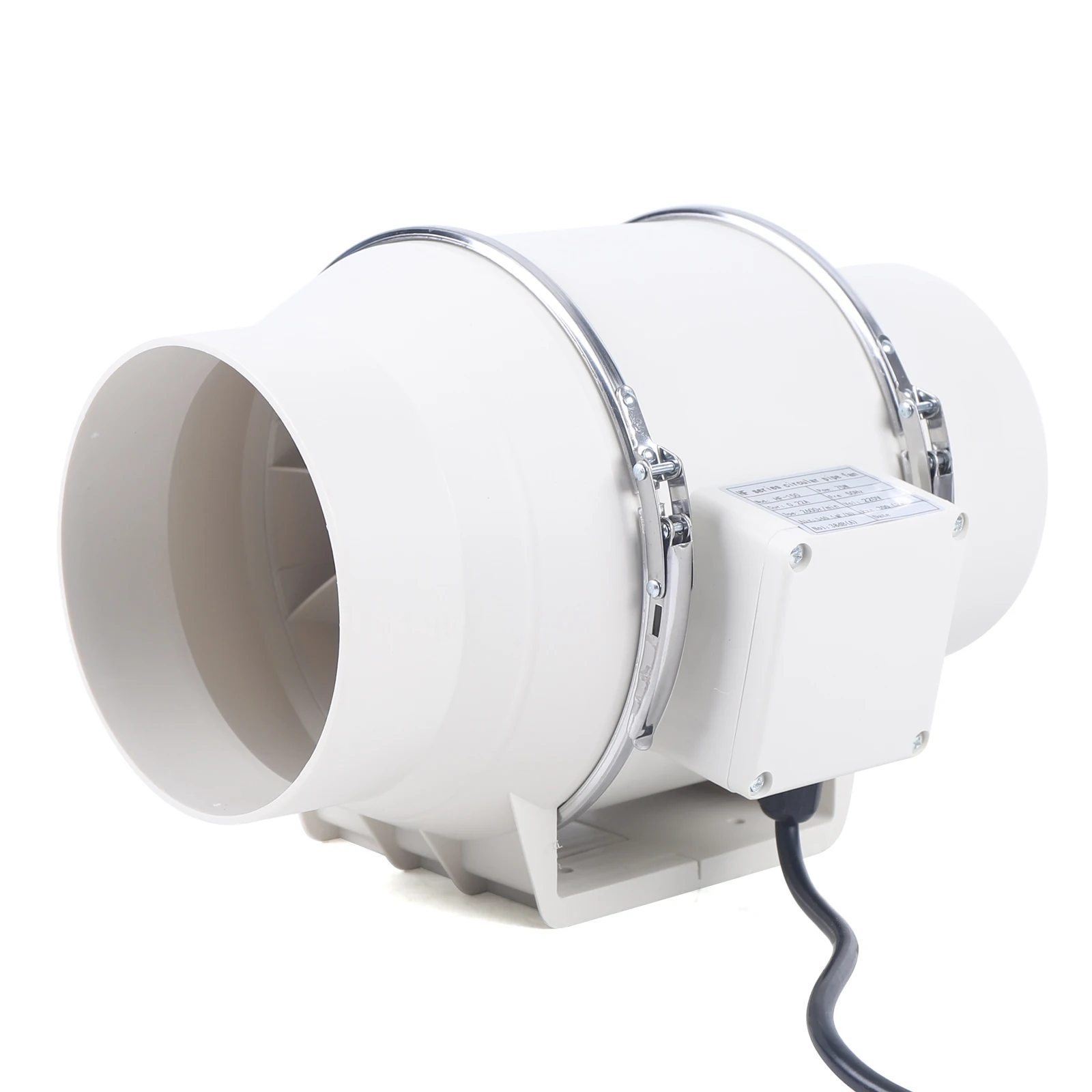

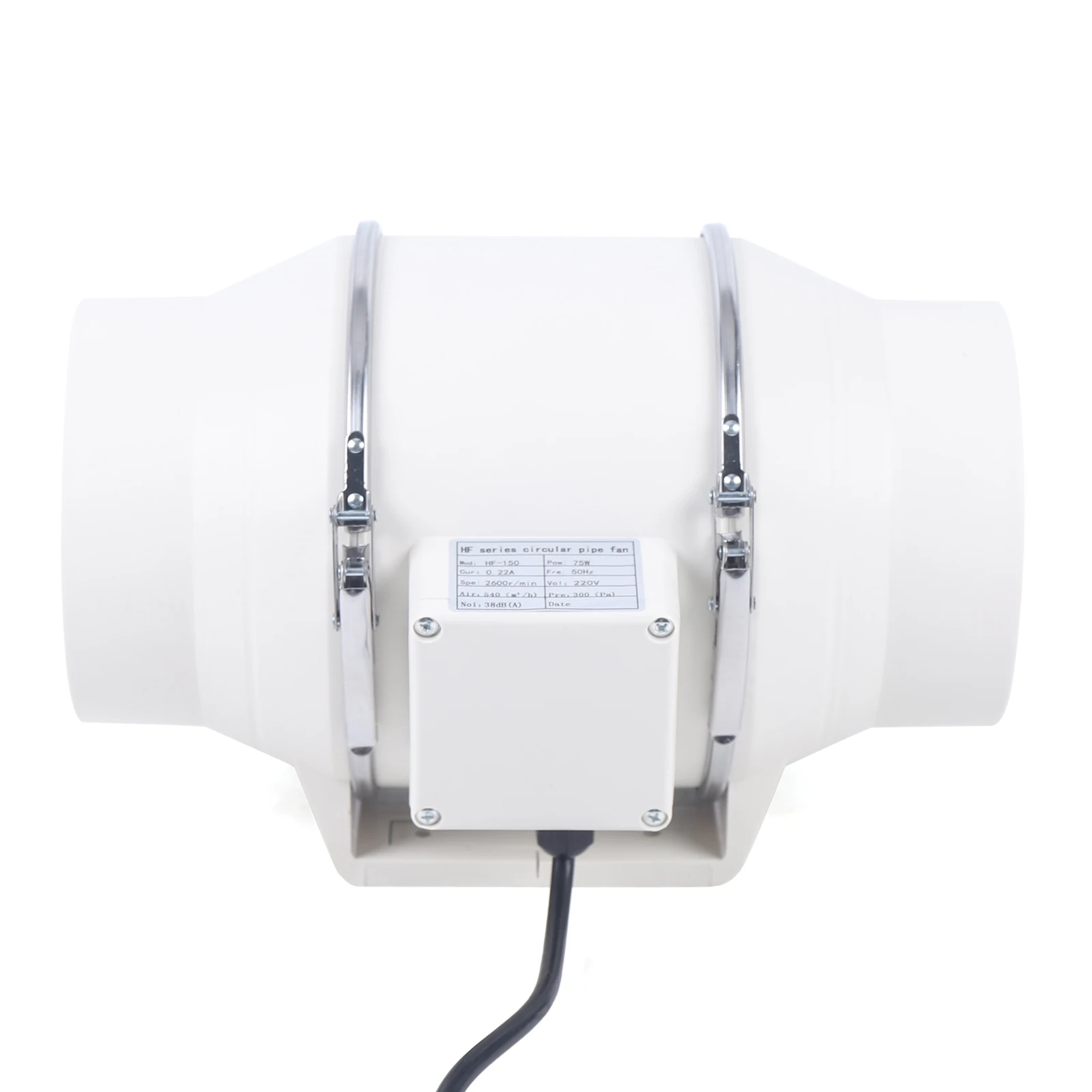

HF-150 220V 75W Air Duct Fan | Silent Pipe Fan | 2600RPM 540m³/h Tube Fan | for Home Kitchen Bathroom Toilet Hotel Industrial Basement Warehouse (EU Plug)

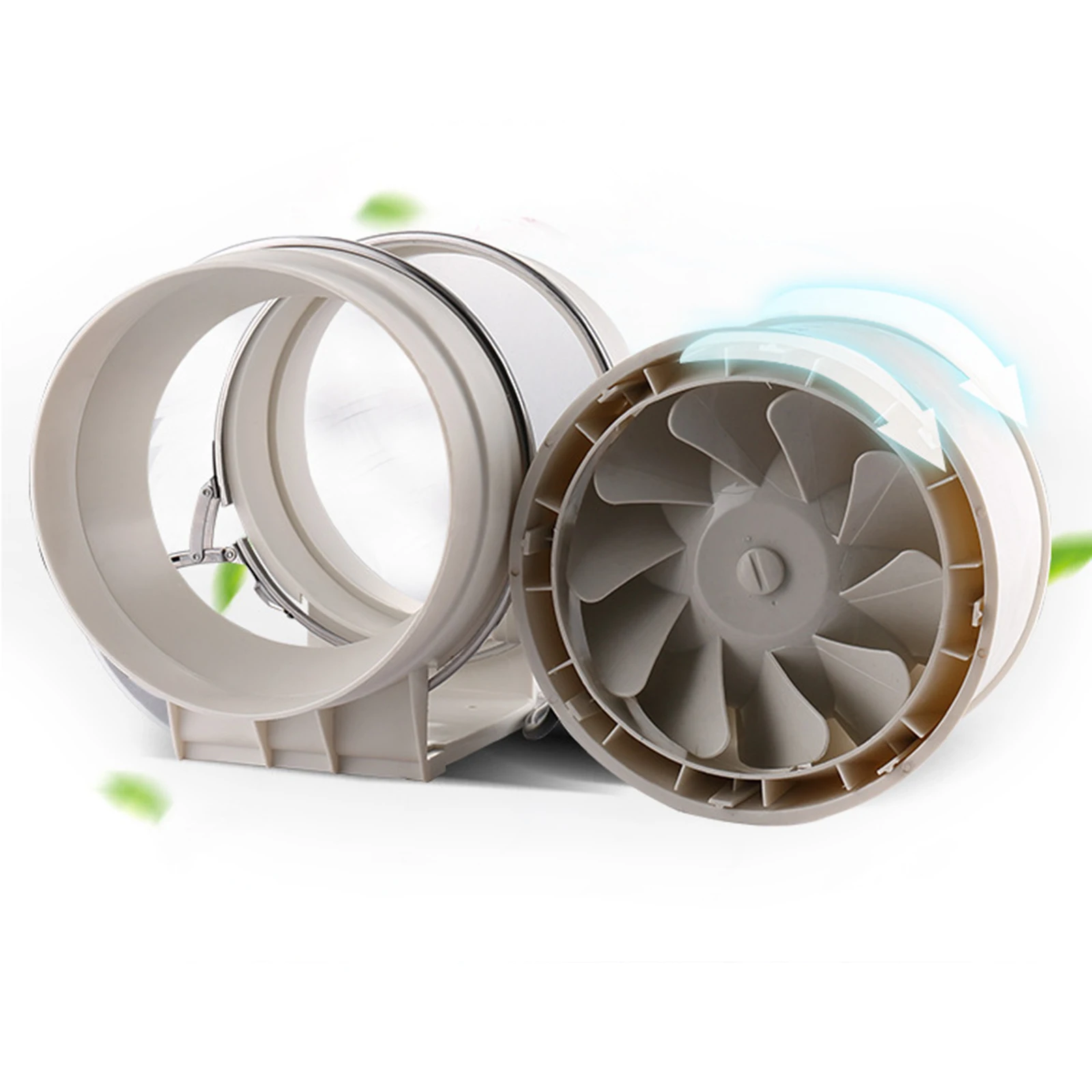

The main body of the duct fan can be disassembled separately, which is convenient for installation and later cleaning and maintenance; Strong power, all copper motor, low energy consumption, low noise, not easy to burn, high power, strong practicability, long service life, moisture-proof, anti-oxidation; The self-locking net cover is firm and stable, easy to disassemble, easy to use, and has a wide range of application; Special junction box, safe and reliable, wide use.

Features:

l The main body can be disassembled separately: easy to install, more convenient for later cleaning and maintenance.

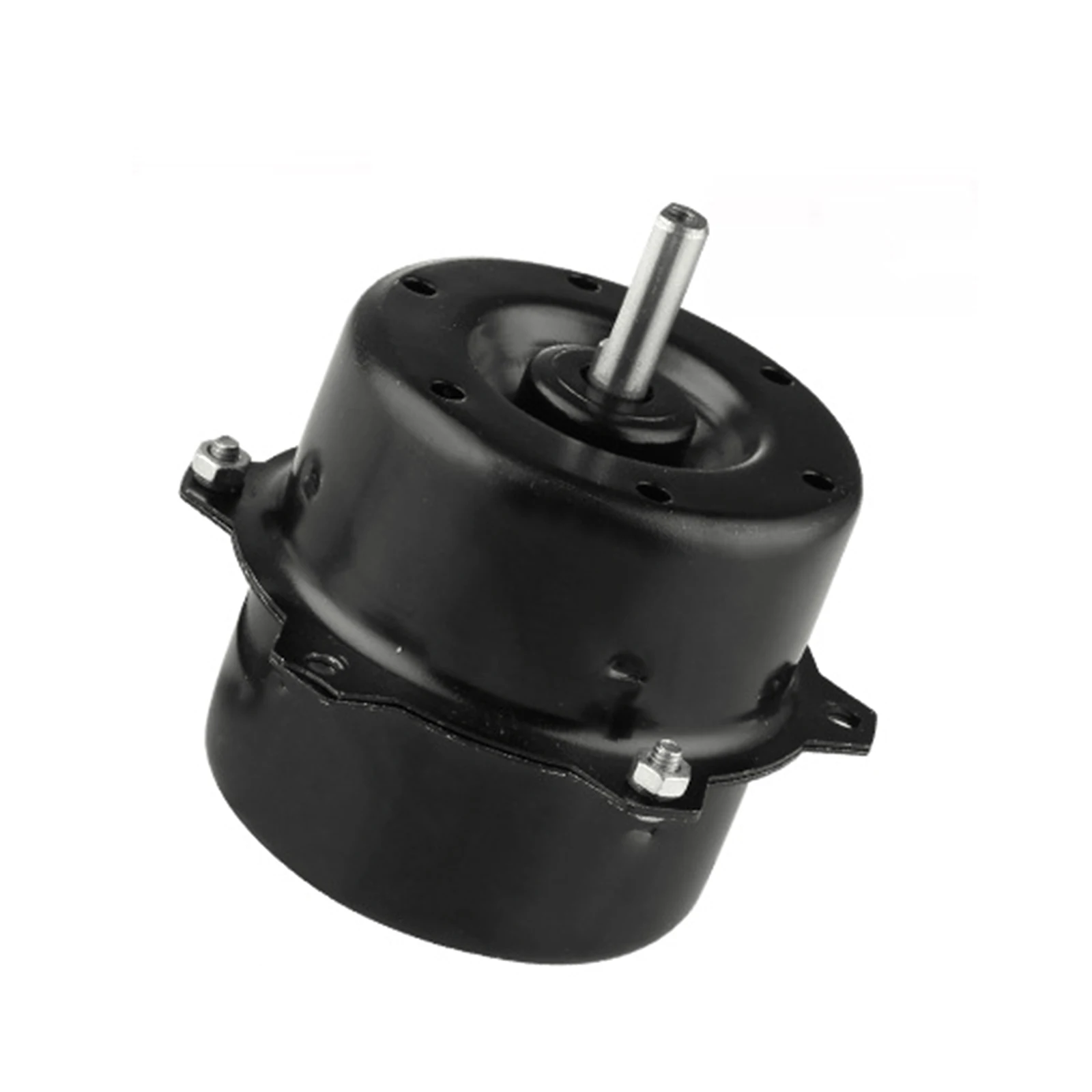

l Strong power, all copper motor: all copper core wire, low energy consumption, low running noise, not easy to burn, strong power, practical, long service life, moisture resistance, oxidation resistance.

l Base design: lightweight ABS base with vertical and horizontal stiffener design, make the installation more secure and firm.

l Self locking net cover: firm and stable, easy to disassemble, easy to use, widely applicable.

l Specific junction box: safe and reliable, widely used.

Packing list:

1 x Tubular fan

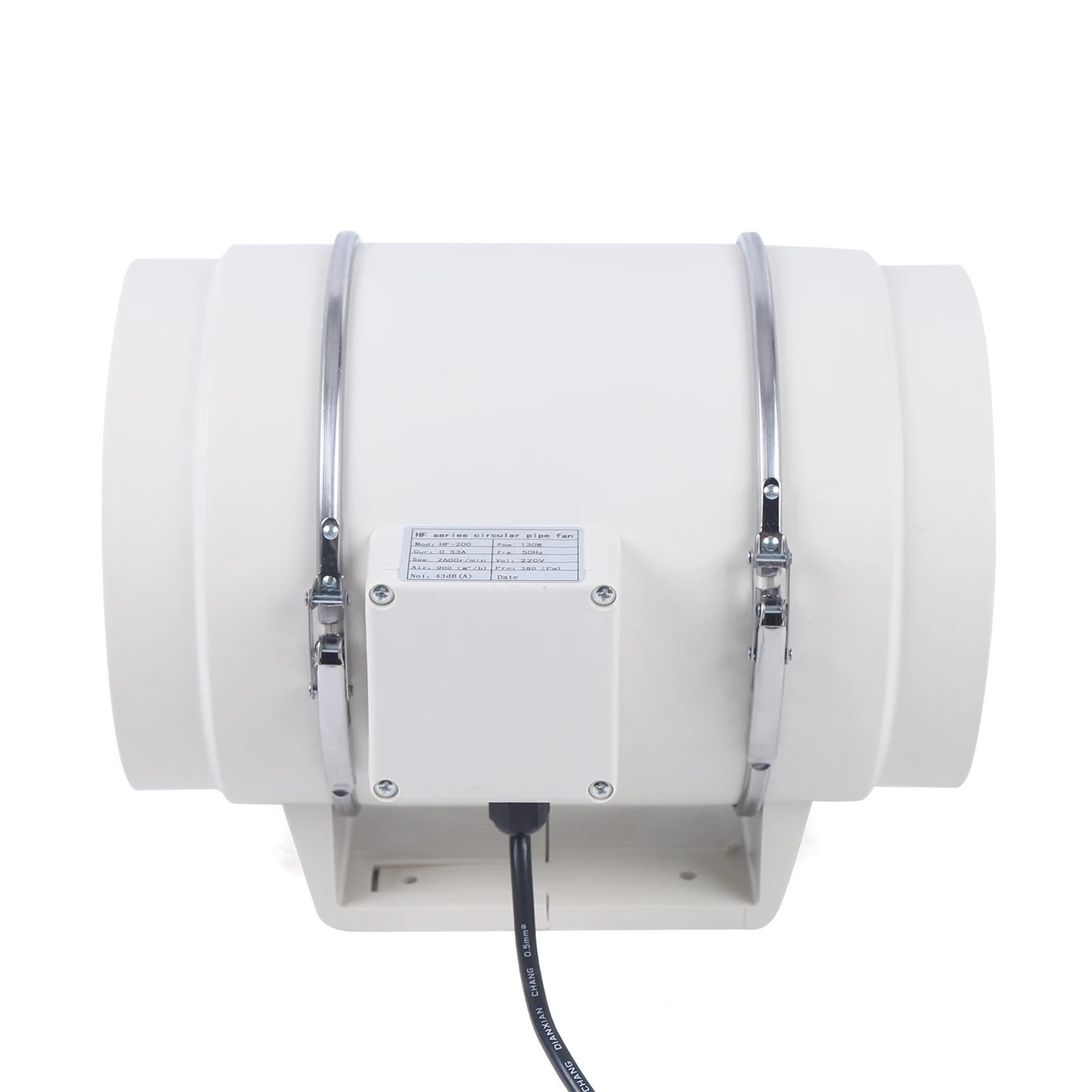

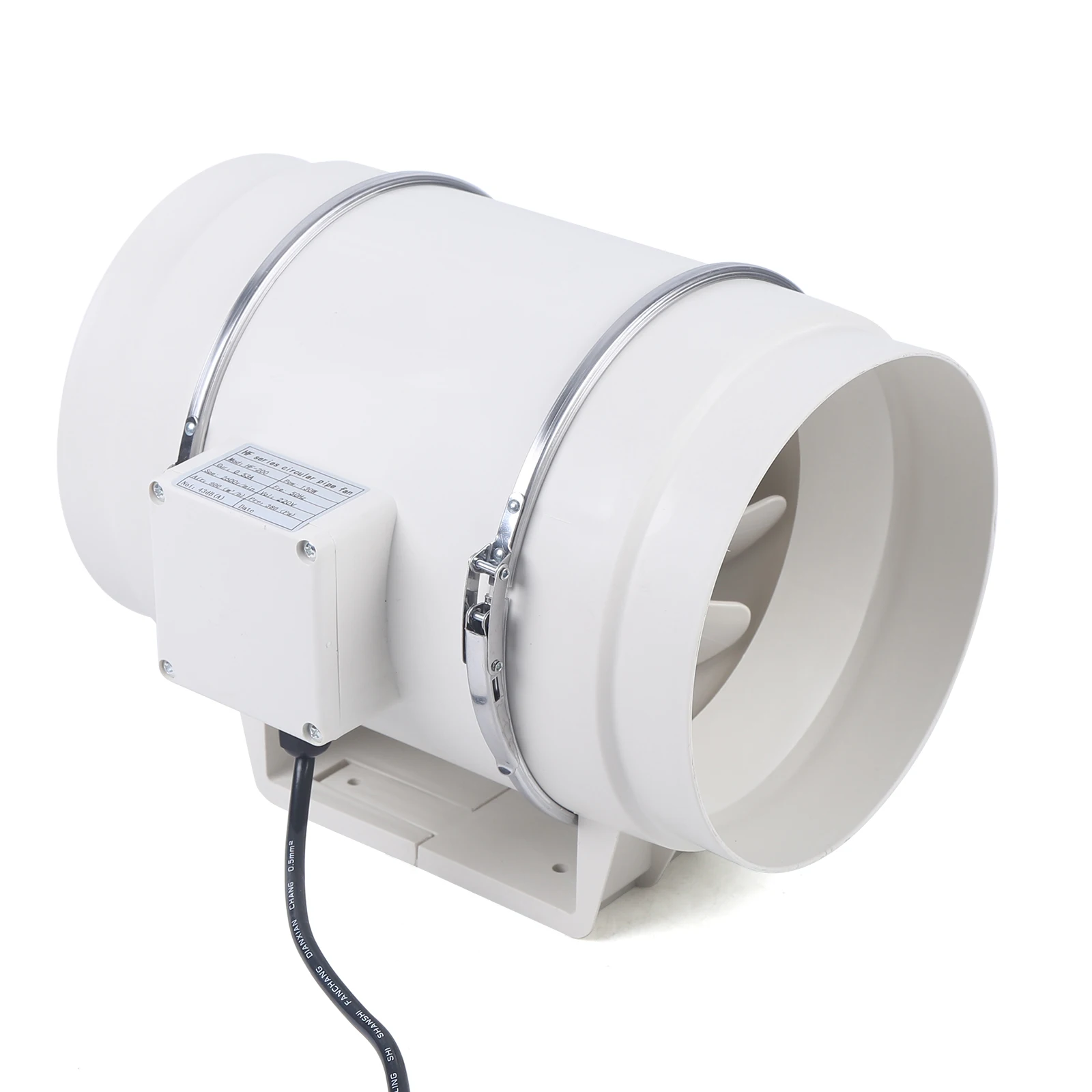

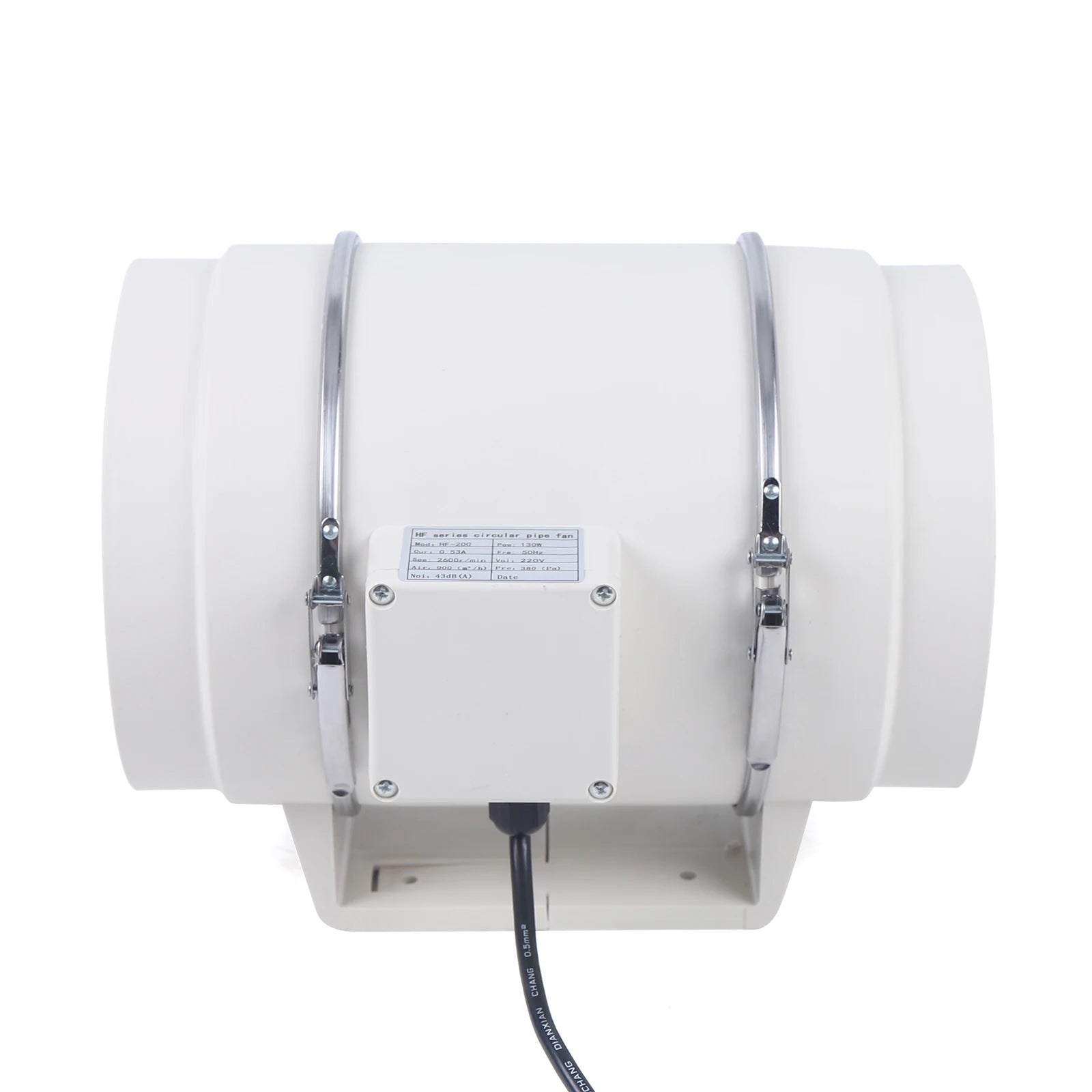

HF-200 220V 130W Air Duct Fan | Silent Pipe Fan | 2600RPM 900m³/h Tube Fan | for Home Kitchen Bathroom Toilet Hotel Industrial Basement Warehouse (EU Plug)

Our air duct fan is an efficient ventilation solution designed for residential, commercial, and industrial use. It is made of high-quality plastic and stainless steel, with good toughness and impact resistance. In addition, it has a low working decibel of 43dB, so you can use it confidently for a long time. Whether it's kitchen exhaust or office ventilation, it's easy to handle.

Key Features

Build to Last: It is made of high-quality plastic and stainless steel, which is very shock-resistant and impact-resistant, ensuring a long service life.

Strong Wind Power: The premium pure copper motor with strong power (130W) gives it 2600rpm rotation speed, 380pa wind pressure, and an air volume of 529.41CFM, so this product can blow a very strong wind to help you quickly ventilate your room so that you can breathe fresh air.

Low Noise: It uses a low-noise motor (43dB), which does not produce a lot of noise to disturb others when in use.

Safety Guard:The pure copper motor is not easy to burn, the special junction box ensures stable and safe wiring, and the overheat protection function also improves the safety of use.

Powerful Function: The 215.28-430.56ft² of the applicable area makes it suitable for a variety of ventilation needs in residential, commercial, and industrial locations.

Easy Assembly: Itssimple structure helps you finish the installation quickly and use it in a short time.

Simple Cleaning: Thanks to its smooth surface and simple structure, you can easily clean it with a rag (not included).

Ideal Gift: With good performance and a modern appearance, it can be used as an ideal housewarming gift for parents, friends, and lovers so that they can enjoy a healthier and safer living environment.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Sturdy Base: The base has a reinforcement design, effectively enhancing the stability and firmness of the installation.

2 Stainless Steel Clamps: They make the product structure more solid and their buckle design allows for easy installation

Application

The product is suitable for homes, kitchens, hotels, toilets, warehouses, conference rooms, office buildings, hospitals, gyms, basements, attics, etc.

Package Included

1* Air Duct Fan

Notes

1. Please carefully check if the size is suitable before placing an order.

2. Please turn the fan off immediately if the blades get stuck by other objects.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
