SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

High-concerned chemical: None

Model Number: PSW01

Origin: Mainland China

Rated Capacity: 2200mah

Notes
:

If the product can be started up normally but cannot be welded properly (even if it is set to the maximum position), this situation is caused by stains on the welding head after a period of use. Please use sandpaper to polish the welding head.

When using this product for welding, the bottom of the nickel sheet must not be padded with plastic or wood. This will cause the probe to turn black and have poor contact, thus making normal welding impossible. At this point, sandpaper is also needed to polish the welding head

Features:

1. 11-Level Adjustable Power Settings:

Ensures precise welding, superior results, and extended usage time.

2. Dual Mode Selection:

Supports seamless switching between automatic and manual modes. Ideal for welding mobile phone batteries and a wide range of common nickel strips, batteries, and more.

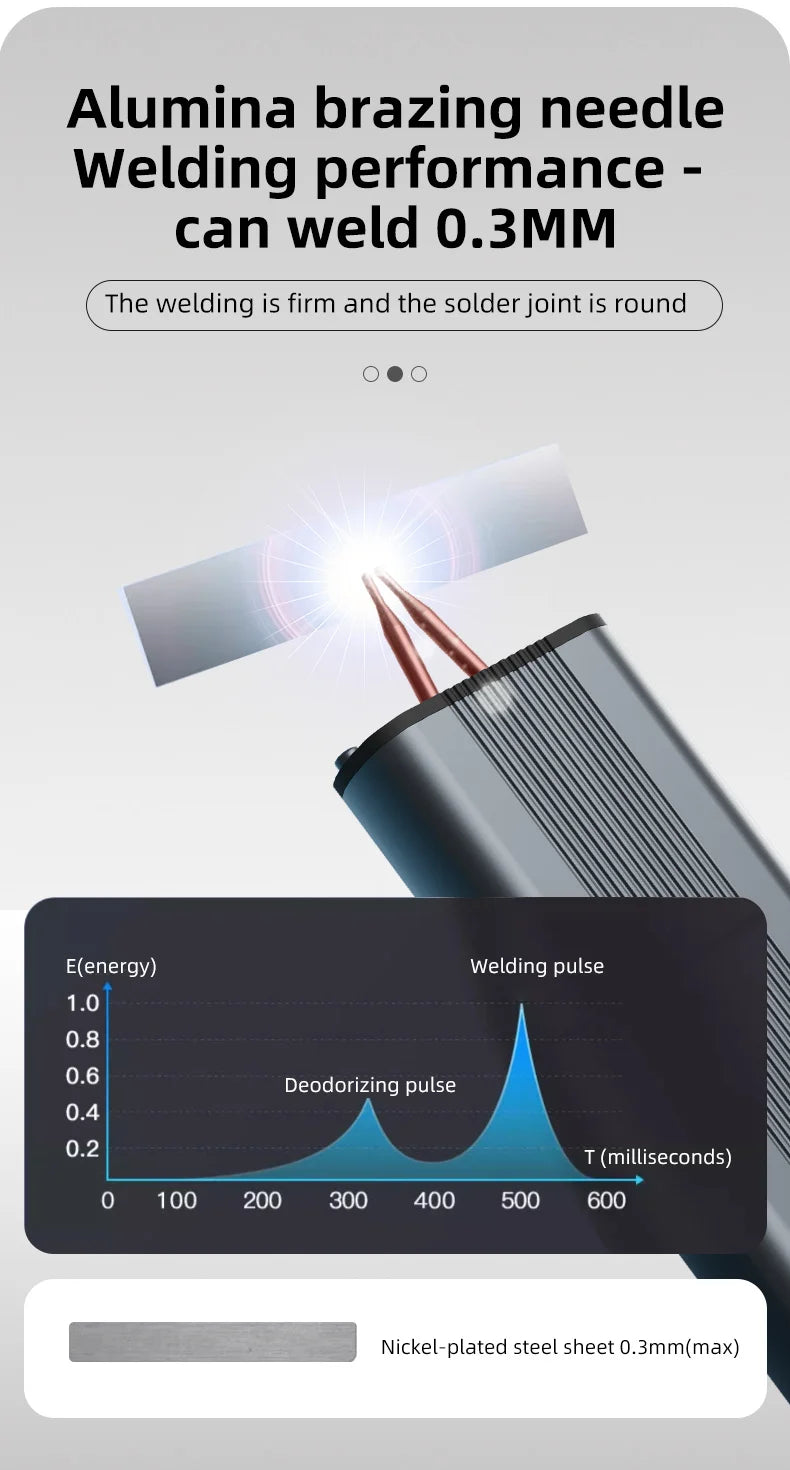

3. Dual Pulse Output:

Boasts robust output capability, supporting nickel strips from 0.1-0.25mm. Automatic welding operation is simple, convenient, ensures sturdy welds, and produces excellent weld points.

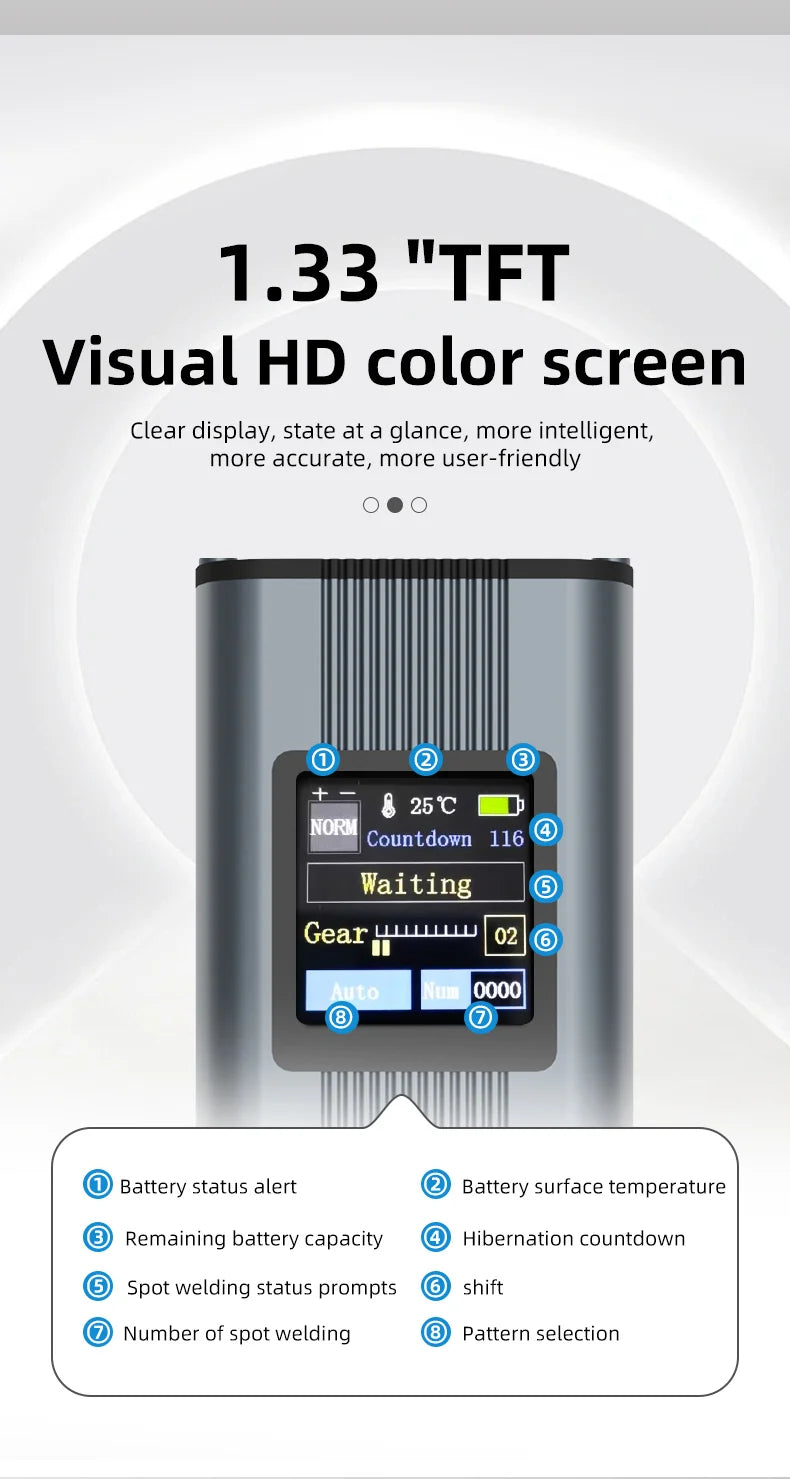

4. HD LCD Display:

Features a 1.33-inch color LCD screen that provides a clear overview of all operational states. The intuitive interface simplifies usage for a more convenient experience.

5. Built-in Multi-Protection Functions:

Includes voltage stabilization, low-temperature, overheat, overcharge, and over-discharge protection. Equipped with a temperature control sensor that activates safety measures upon overheating, enhancing overall safety.

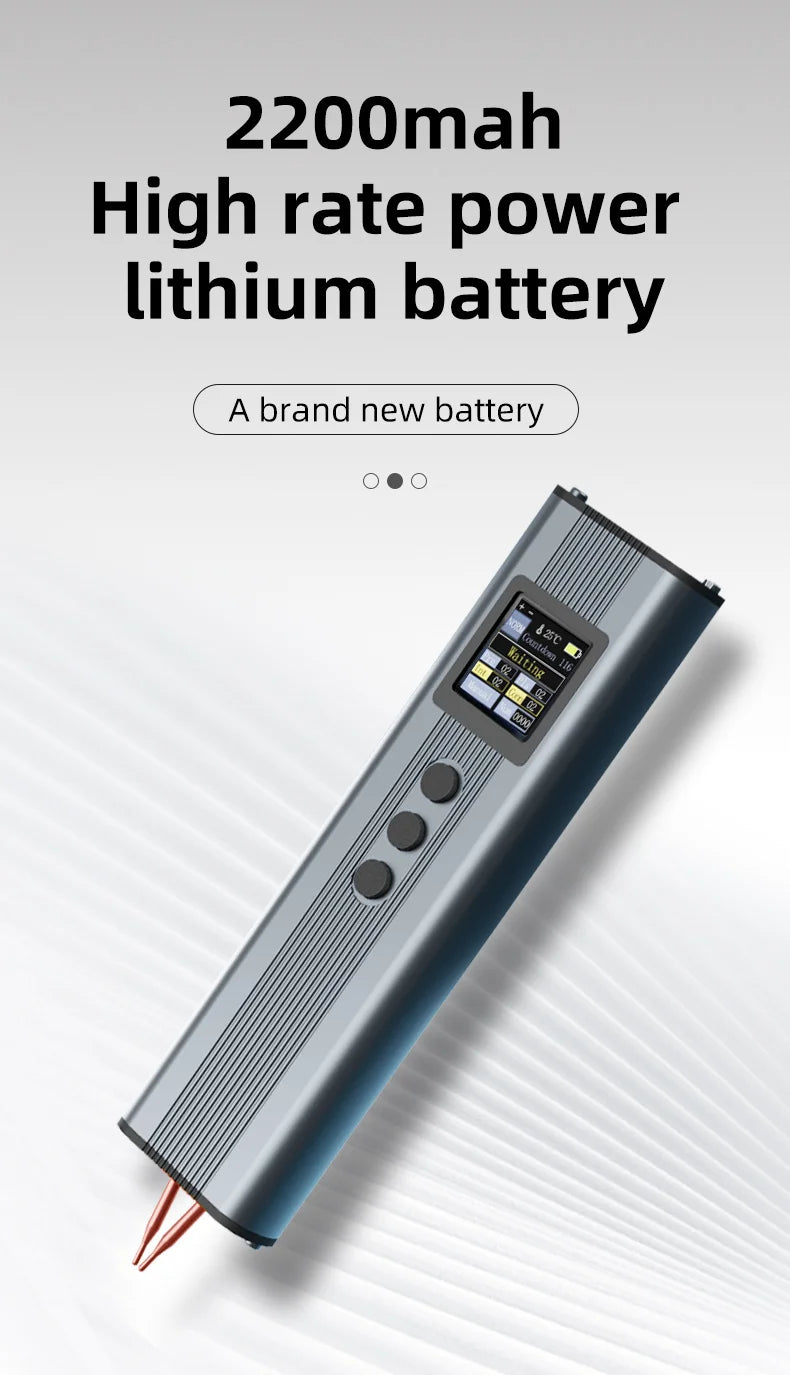

6. Low Power Consumption & Long-Lasting Battery:

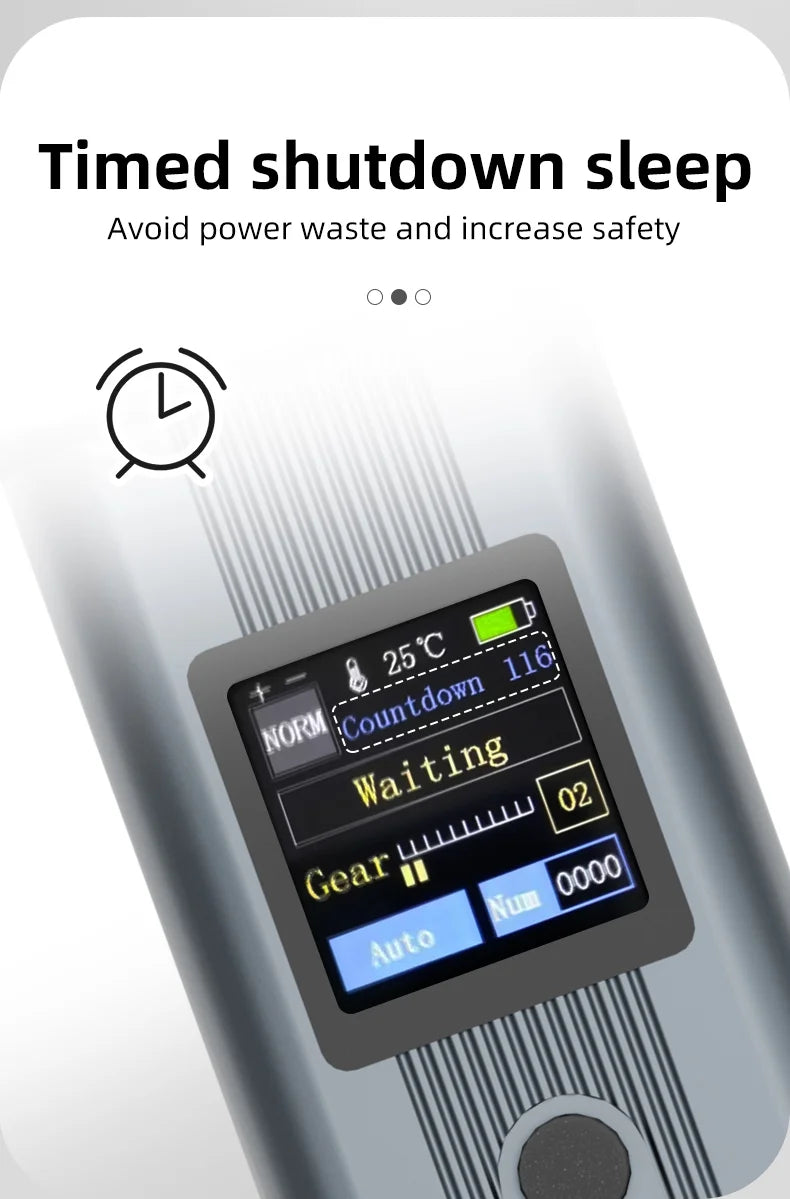

Utilizes a powerful lithium-polymer battery that delivers strong output with minimal power consumption, ensuring extended usage. Capable of continuous spot welding up to 1500 points, reducing frequent charging needs. Comes with an adjustable auto-sleep function.

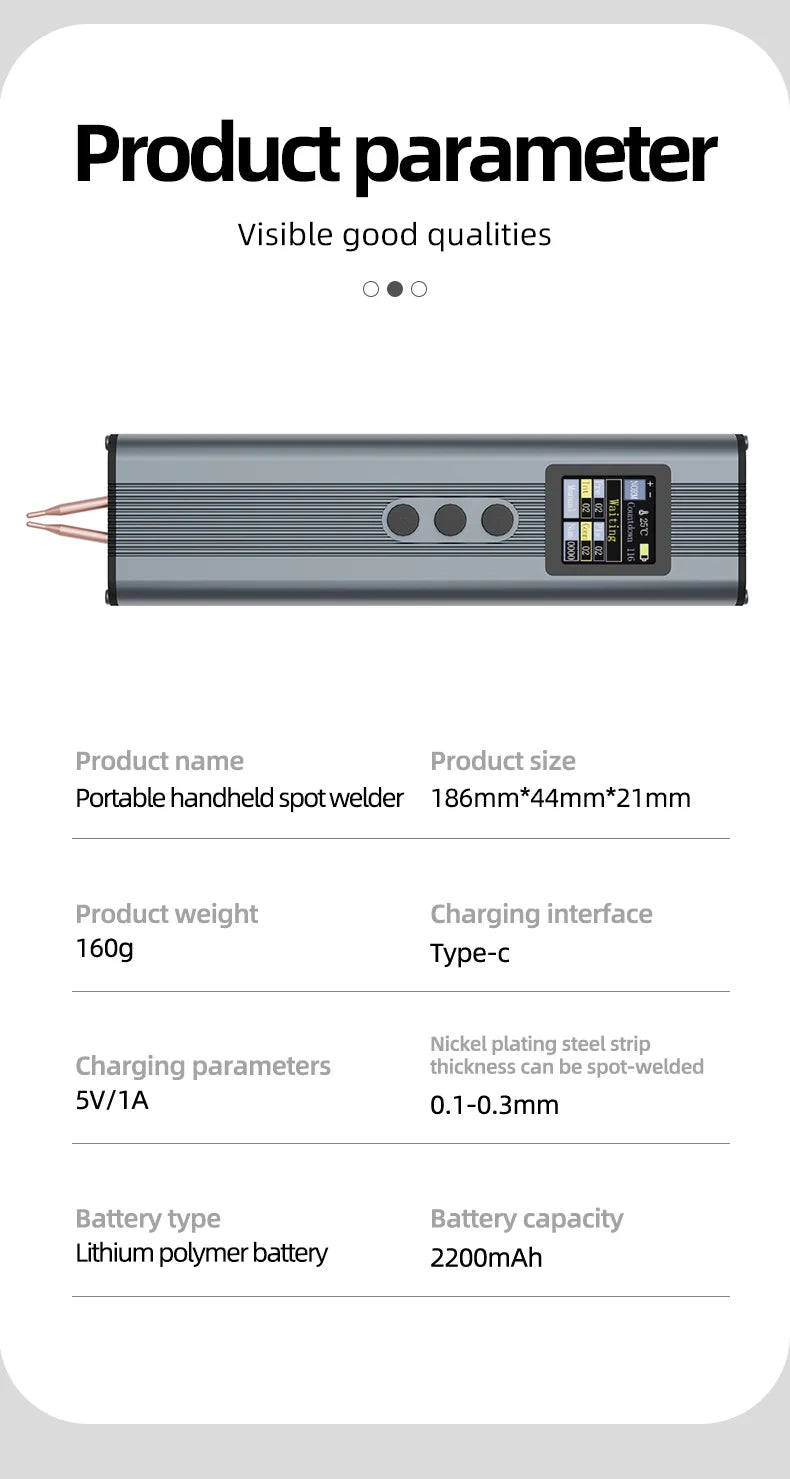

Product Specifications:

1. LCD Display: Displays power, settings, delay, voltage, mode, and internal temperature.

2. Continuous Spot Welding Mode: Supported

3. Power Settings Adjustment: 11 levels

4. Battery Type: Lithium-Polymer Battery

5. Battery Capacity: 2200mAh

6. Current: 600A (MAX)

7. Input Interface: Type-C

8. Input Parameters: 5V/1A

9. Weldable Nickel Strip Thickness: 0.1-0.25mm

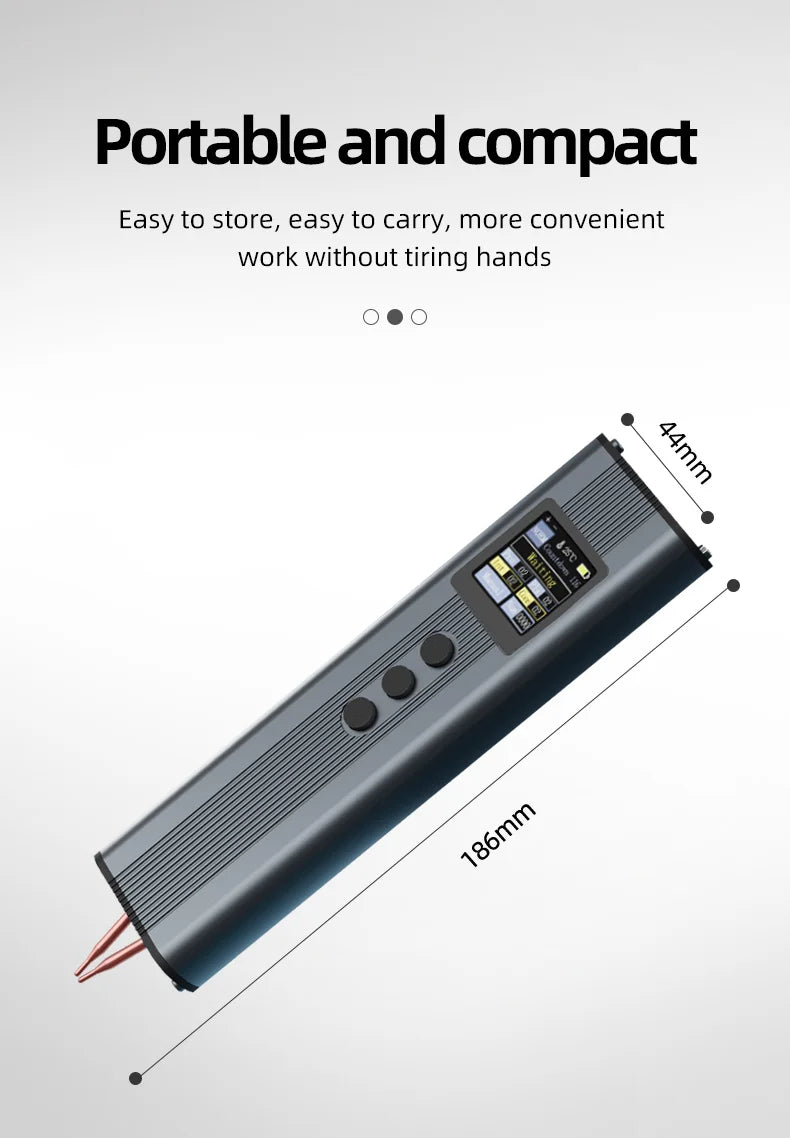

10. Product Dimensions: 18.4*4.4*2.1cm

Safety Precautions:

- Read Instruction Manual Thoroughly Before Use

- Welding Head Outputs on Metal Contact, Lift for Next Weld

- Clean, Rust-Free Surface & Nickel Strips. Good Contact for - Optimal Results. Experiment with Settings.

- Use Only 5V Type-C Charger. No Simultaneous Charging & Use.

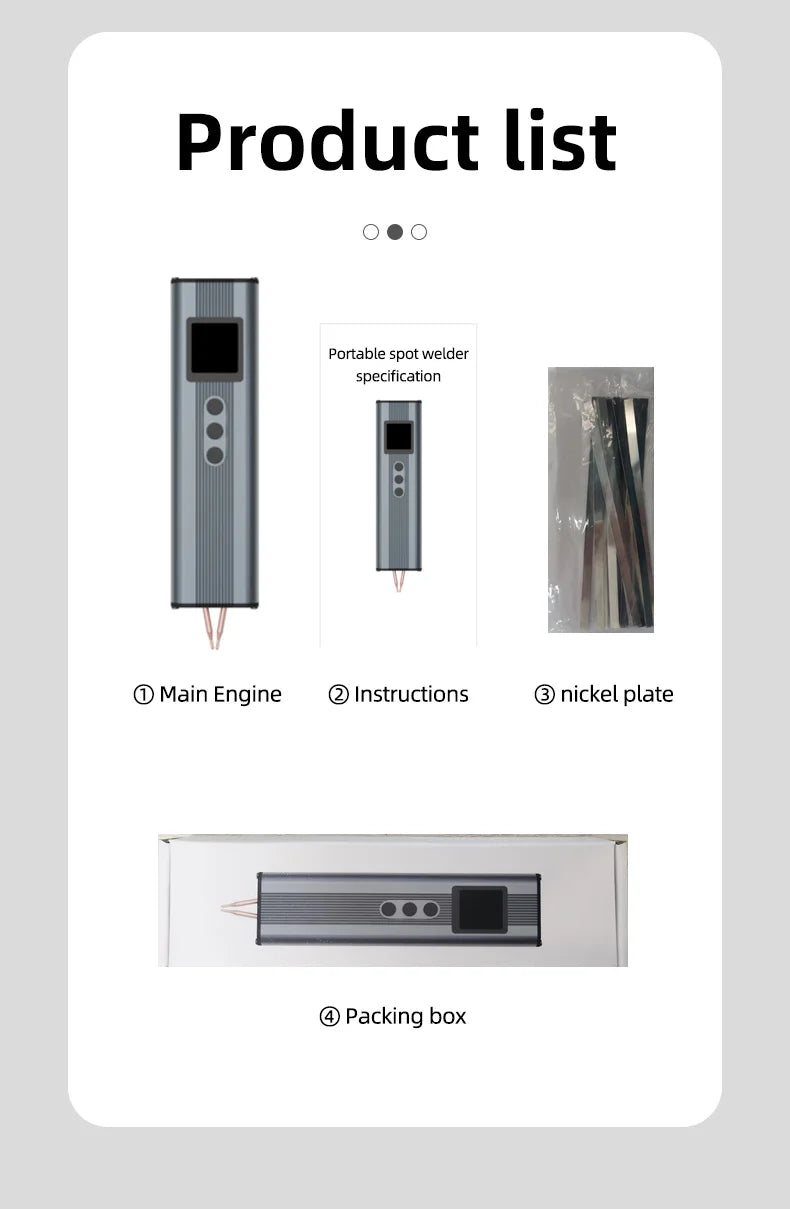

Package Includes:

1 X Spot Welder

1 X 0.12mm Nickel-Plated Strip

1 X Sandpaper

1 X Manual
